PS50-TB

Cikkszám: 8

Állapot: Ajánlatkérés

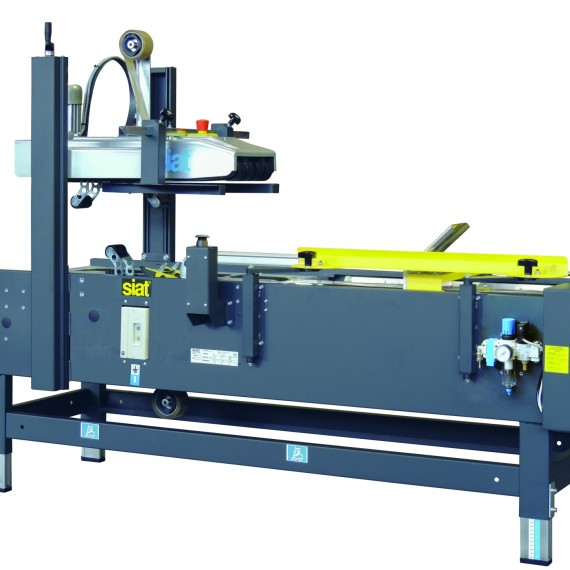

PS50-TB is a Semi-Automatic Single Block Case Former & Sealer.
Packing and taping station made up of a boxes forming station with pusher cylinder and a sealing section with top and bottom driven belts suitable for packaging of various box dimensions. This section allows a large margin of boxes sliding height adjustment. The PS50-TB packing station provides boxes forming and sealing operations with adhesive tape through the simultaneous application of two adhesive tape stripes on the upper and lower boxes middle line.

  • Case forming section / case sealing section (top & bottom)
  • Adjustable on the box sizes by handles
  • Top & bottom drive belts (2 x 50 mm width each)
  • 2 motors kW 0,13 each
  • 2 x K11R taping unit - 50 mm width
  • Adjustable working height 585 – 785 mm



  • PS50-TB
  • Box dimensions
  • Min. L 200 mm W 150 mm H 100 mm
  • Max. L 600 mm W 500 mm H 500 mm
